Comprehensive Professional Description: Chery A5 Piston Ring Set (Part No. 484J-1004030)
1. Basic Overview & Core Functional Positioning
The 484J-1004030 is an authentic original equipment manufacturer (OEM) complete piston ring set, precision-engineered and produced exclusively for Chery A5 compact sedan models equipped with the 484J engine platform, serving as one of the most critical friction and sealing components in the engine’s crankcase and piston assembly. As a core matching part for the engine piston and cylinder liner, this piston ring set undertakes three irreplaceable core functions: sealing the combustion chamber to prevent high-pressure combustion gas from leaking into the crankcase, scraping excess lubricating oil from the cylinder wall to avoid oil burning and carbon deposition, and conducting heat from the high-temperature piston to the cylinder liner for efficient heat dissipation. It is a key component that directly determines engine power performance, fuel efficiency, oil consumption rate, and service life, and is indispensable for engine overhaul, cylinder wear repair, and power restoration.
Mounted in the specially designed ring grooves on the outer surface of the engine piston, the 484J-1004030 piston ring set operates in an extremely harsh working environment, enduring instantaneous high temperatures up to 300℃, ultra-high combustion pressure up to 130 bar, high-speed reciprocating friction, and continuous mechanical vibration. Each set contains a full configuration of piston rings required for a single engine, including compression rings and oil control rings, with precise dimensions and elastic properties tailored to the 484J engine’s cylinder bore diameter, piston size, and operating clearance requirements. For the Chery A5, a practical and economical family sedan positioned for daily urban commuting, long-distance travel, and stable daily use, the quality and performance of this piston ring set are directly linked to normal engine operation; worn, damaged or substandard piston rings will lead to a series of severe engine failures, including insufficient cylinder compression, power loss, excessive oil consumption, blue smoke exhaust, cylinder knocking, and coolant contamination, ultimately shortening the engine’s service life and increasing maintenance costs.
Unlike single-piece aftermarket piston rings, the 484J-1004030 OEM full set is manufactured in strict accordance with Chery’s original factory engineering and material standards, with uniform material properties, precise elastic tension, and perfect fit clearance, ensuring consistent performance across all cylinders. It is the only reliable replacement solution for Chery A5 484J engine maintenance and overhaul, capable of restoring the engine to its factory-level sealing and friction performance, eliminating abnormal operating faults, and ensuring long-term stable and efficient engine operation.

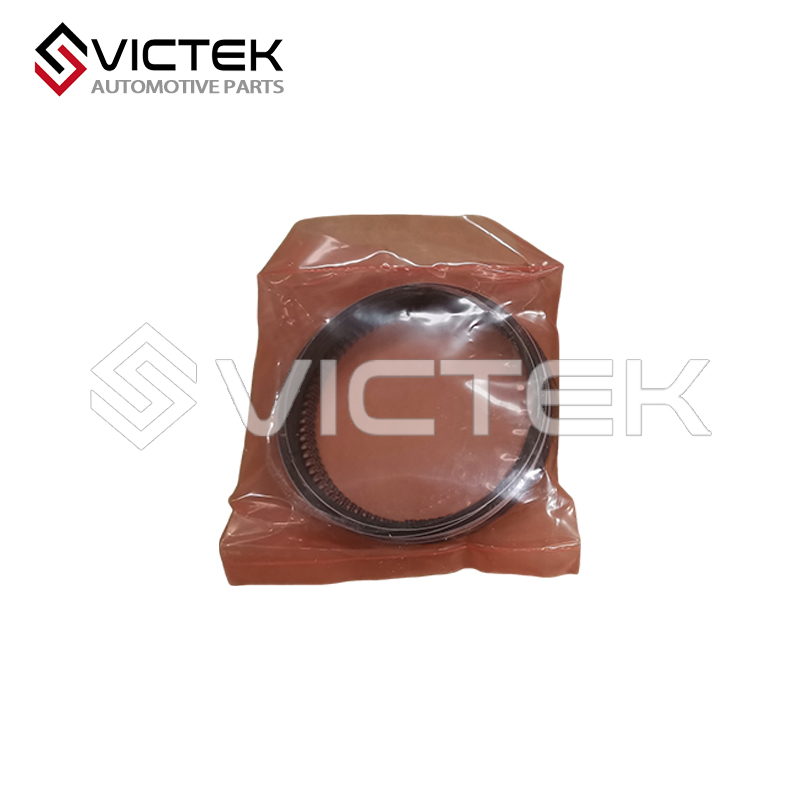

![484J-1004030]( "484J-1004030")
2. Premium Material Selection & Precision Manufacturing Process
The 484J-1004030 piston ring set adopts high-performance special alloy materials for different functional rings, selected in strict compliance with Chery’s OEM quality specifications and heavy-duty engine friction component standards, focusing on high wear resistance, high temperature resistance, excellent elasticity, corrosion resistance, and low friction coefficient to adapt to the engine’s extreme high-temperature, high-pressure, and high-speed friction operating environment. Each type of piston ring uses a targeted material formula to maximize its specific functional performance.
The first and second compression rings, responsible for core combustion chamber sealing, are made of high-grade ductile cast iron with pearlitic structure, reinforced with trace alloy elements such as chromium, molybdenum, and copper. This material features high tensile strength, excellent thermal stability, and exceptional wear resistance, maintaining stable elasticity and sealing performance under long-term high-temperature and high-pressure conditions without plastic deformation or fracture. The outer surface of the compression rings undergoes a precision chrome plating or molybdenum spraying process, forming a ultra-hard, smooth surface layer with a thickness of 0.08-0.12mm, which further enhances wear resistance, reduces friction with the cylinder wall, and resists scuffing and adhesion faults common in inferior piston rings.
The oil control ring, responsible for scraping excess engine oil and regulating oil film thickness on the cylinder wall, adopts a three-piece combined design (two side rails + one spiral expander) made of high-elasticity spring steel and wear-resistant alloy cast iron. The spiral expander is crafted from premium spring steel with stable long-term elasticity, ensuring the oil control ring maintains close contact with the cylinder wall continuously; the side rails use wear-resistant alloy material with a finely ground working surface, enabling efficient oil scraping without scratching the cylinder liner. All materials are resistant to engine oil corrosion and high-temperature aging, avoiding performance degradation caused by long-term immersion in lubricating oil.
The manufacturing process of the 484J-1004030 piston ring set follows a fully automated precision production line, starting with precision casting and forging of blanks to ensure a dense internal structure with no pores, cracks, or inclusions. After blank forming, the rings undergo multiple precision machining processes, including turning, grinding, and lapping, achieving micron-level dimensional accuracy, uniform wall thickness, and perfect roundness. The ring end gaps, radial thickness, and elastic tension are strictly controlled within Chery’s original factory tolerance range. Post-machining, the piston rings undergo heat treatment (quenching and tempering) to optimize internal stress and enhance mechanical properties, followed by surface finishing and quality inspection. Each ring is tested for dimensional accuracy, elastic tension, hardness, and surface finish before being assembled into a complete set, ensuring 100% compliance with OEM standards and eliminating defective products.
![484J-1004030]( "484J-1004030")
3. Structural Design & Complete Set Configuration
The 484J-1004030 is a full-engine matched piston ring set, designed with a scientific, layered functional structure tailored exclusively for the Chery A5 484J engine, with a complete configuration covering all piston rings required for the engine’s cylinders. The set follows the standard OEM configuration for the 484J engine, with a clear division of labor for each ring to achieve collaborative efficient operation, and precise dimensional parameters matching the engine’s cylinder bore diameter and piston ring groove size.
A complete 484J-1004030 piston ring set includes two types of piston rings for each cylinder: compression rings and oil control rings, with a full set covering all cylinders of the 484J engine, eliminating the need for separate purchases and ensuring consistent performance across all cylinders. The first compression ring features a barrel-shaped outer surface design, which optimizes contact with the cylinder wall, promotes the formation of a uniform lubricating oil film, reduces friction loss, and enhances sealing performance during piston reciprocation. This design also adapts to minor cylinder wall irregularities, preventing gas leakage and improving cylinder compression efficiency.
The second compression ring adopts a tapered face or napier ring design, with dual functions of auxiliary sealing and preliminary oil scraping. It assists the first compression ring in blocking high-pressure combustion gas while initially scraping excess oil from the cylinder wall, reducing the working load of the oil control ring and preventing oil from entering the combustion chamber. The ring’s precise end gap is strictly controlled to ensure proper thermal expansion clearance, avoiding ring breakage or reduced sealing due to thermal expansion during engine operation.
The three-piece combined oil control ring is the core component for oil control, consisting of two thin alloy side rails and a built-in spiral expander. The spiral expander provides continuous, uniform radial tension, pushing the side rails tightly against the cylinder wall to efficiently scrape excess lubricating oil back into the oil pan, preventing oil from entering the combustion chamber for burning, which is the key to controlling engine oil consumption and reducing carbon deposition. The oil return holes on the oil control ring are precisely positioned and sized, ensuring smooth oil return without blocking, maintaining a moderate and uniform oil film on the cylinder wall to lubricate the piston and ring assembly without causing oil waste.
All piston rings in the set have strictly calibrated radial thickness and axial height, fitting perfectly into the piston ring grooves without excessive clearance or tight clamping. This ensures the rings can move slightly freely in the grooves to adapt to cylinder wall wear and thermal expansion, while maintaining stable sealing and oil control performance, avoiding ring jamming or excessive clearance that leads to functional failure.
![484J-1004030]( "484J-1004030")
