SX7-2803710DF
Product Details
1. Basic Overview & Core Functional Positioning

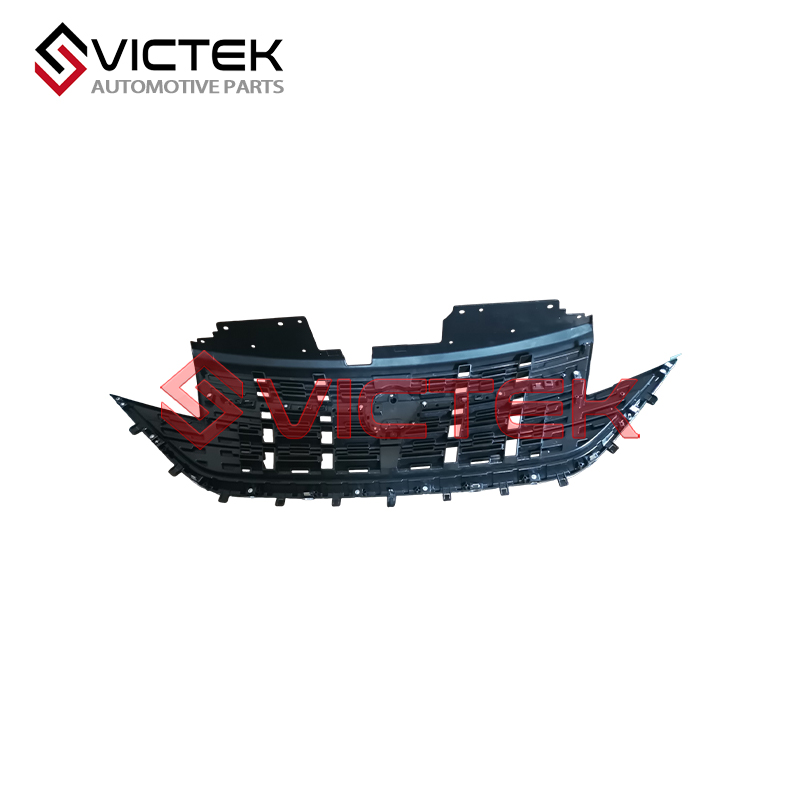

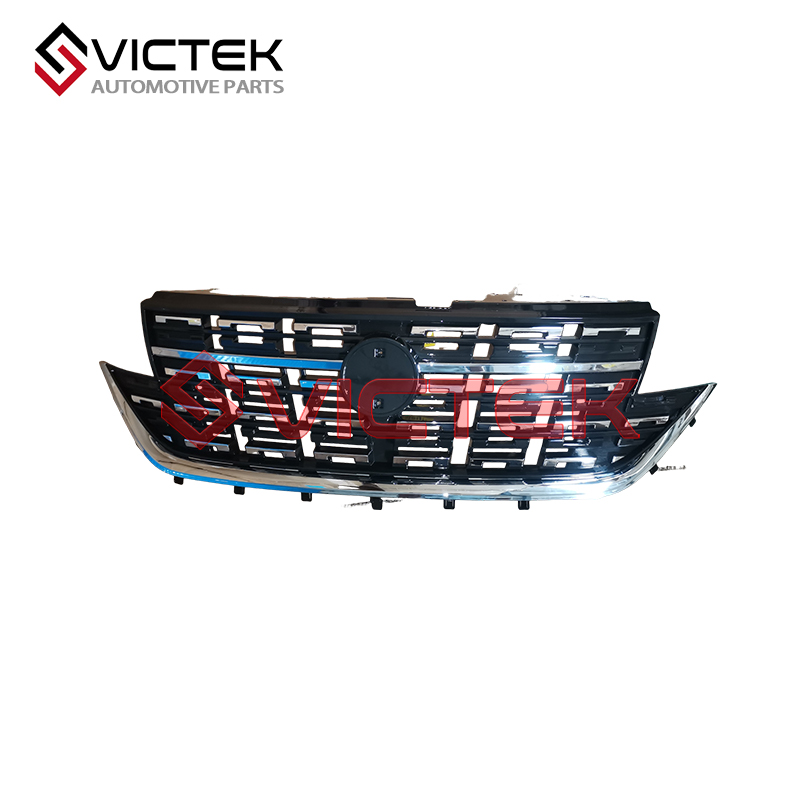

The SX7-2803710DF Radiator Grill is an authentic Original Equipment Manufacturer (OEM) component exclusively developed and produced by Dongfeng Motor Group Co., Ltd. for the Dongfeng SX5, a compact SUV renowned for its durability, practicality, and cost-effectiveness, catering to the diverse needs of urban commuting, family travel, and light off-road use. As a critical front-end component that integrates functional performance and aesthetic design, the SX7-2803710DF (hereinafter referred to as the "radiator grill") is mounted at the front center of the Dongfeng SX5’s bumper, directly above the front bumper cover and in front of the radiator assembly. It undertakes three core functions that are indispensable to the vehicle’s normal operation and driving safety: promoting efficient airflow to cool the radiator and engine, forming a protective barrier against external debris, and enhancing the vehicle’s front-end visual appeal and brand recognition.
The Dongfeng SX5, as a compact SUV equipped with a reliable engine and designed for versatile driving scenarios, relies heavily on the radiator grill to maintain the engine’s optimal operating temperature. During operation, the engine generates a significant amount of heat, and the radiator grill serves as the primary entry point for cool external air to flow through the radiator, absorbing and dissipating the excess heat produced by the engine. This heat dissipation function is particularly crucial in extreme operating conditions—such as high-speed driving, hot summer weather, or heavy-load operation—where insufficient airflow can lead to engine overheating, reduced power output, and even irreversible damage to engine components. Beyond its heat dissipation role, the radiator grill also acts as a robust protective shield, preventing large debris (such as stones, branches, leaves, and road gravel) from entering the engine compartment and damaging the radiator, condenser, cooling fan, and other sensitive components. This protective function effectively extends the service life of the vehicle’s cooling system and reduces long-term maintenance costs.
The part number SX7-2803710DF serves as a unique identifier for this radiator grill, distinguishing it from other front-end components of the Dongfeng SX5 (such as the front bumper, fog lamps, or headlamps) and components used in other Dongfeng models (such as the Dongfeng AX7, AX3, or Fengguang 580). Notably, this radiator grill is specifically engineered for the Dongfeng SX5, with its dimensions, mounting points, and structural design precisely tailored to the vehicle’s front-end layout, ensuring perfect compatibility with the radiator assembly, bumper, and headlamp assemblies. As a genuine OEM component, the SX7-2803710DF strictly complies with Dongfeng’s original design specifications, material standards, and performance requirements, while also adhering to international automotive quality and safety standards (ISO 9001, IATF 16949). Unlike low-quality aftermarket radiator grills that often cut corners in material selection and structural design, the genuine SX7-2803710DF undergoes rigorous testing and validation to ensure reliability, durability, and optimal performance, making it the preferred choice for Dongfeng SX5 owners and professional automotive repair technicians.
In addition to its functional roles, the SX7-2803710DF Radiator Grill plays a pivotal role in shaping the Dongfeng SX5’s exterior aesthetic. Designed to align with the vehicle’s rugged, practical, and modern front-end design, the radiator grill features a distinctive horizontal grid pattern and an integrated Dongfeng brand logo, enhancing the vehicle’s visual appeal and brand recognition. The grill’s shape and surface finish complement the Dongfeng SX5’s headlamps and front bumper, creating a cohesive and robust front-end look that is consistent with the vehicle’s compact SUV positioning. A damaged or ill-fitting radiator grill not only compromises the vehicle’s heat dissipation and protective functions but also detracts from its overall appearance and may even reduce its resale value. Therefore, the genuine SX7-2803710DF Radiator Grill is an essential replacement part for maintaining the Dongfeng SX5’s performance, safety, and aesthetic integrity.
2. Premium Material Selection & Precision Manufacturing Process
The Dongfeng SX7-2803710DF Radiator Grill is crafted from high-performance, automotive-grade materials, carefully selected by Dongfeng’s engineering team to withstand the harsh operating conditions of the vehicle’s front end—including exposure to extreme temperatures (ranging from -40°C to 85°C), moisture, dust, UV radiation, road salt, and mechanical impact from gravel, debris, or minor collisions. Drawing on years of experience in automotive exterior component manufacturing and advanced material science, Dongfeng prioritizes materials that balance structural rigidity, impact resistance, corrosion resistance, and lightweight properties, ensuring the radiator grill maintains stable performance over a service life of typically 70,000–100,000 kilometers under normal operating conditions (depending on usage environment and maintenance habits).
The core structure of the SX7-2803710DF Radiator Grill consists of a main frame, horizontal grid bars, a mounting bracket, and an integrated Dongfeng brand logo. The main frame and grid bars are made of high-strength ABS (Acrylonitrile Butadiene Styrene) plastic with a reinforced glass fiber additive, which significantly enhances structural rigidity, impact resistance, and dimensional stability. This modified ABS plastic is widely used in automotive exterior components due to its excellent mechanical properties—it can withstand minor impacts without cracking, resist deformation under extreme temperatures, and maintain its shape and structural integrity over time. The glass fiber reinforcement further improves the material’s tensile strength and resistance to wear, ensuring the grill can withstand the rigors of daily driving and harsh environmental conditions, such as rough road surfaces and frequent exposure to dust and debris.
The surface of the SX7-2803710DF Radiator Grill is treated with a high-quality electrostatic spraying coating, available in a matte black or gloss black finish (depending on the Dongfeng SX5’s trim level), which not only enhances the vehicle’s aesthetic appeal but also provides superior corrosion resistance and UV protection. The electrostatic spraying process ensures uniform coating coverage, with a smooth, even surface that resists scratches, fading, and peeling caused by UV radiation, road salt, and environmental pollutants. This coating also protects the underlying ABS plastic from moisture and oxidation, preventing rust and degradation—particularly important for vehicles driven in coastal areas or regions with harsh winters, where road salt and moisture can accelerate component damage.
The mounting bracket of the radiator grill is made of high-strength steel, which provides a secure and stable connection between the grill and the vehicle’s front-end frame. The steel mounting bracket is precision-machined to ensure perfect alignment with the Dongfeng SX5’s mounting points, eliminating vibration and ensuring the grill remains firmly in place during high-speed driving or rough road conditions. The bracket is also treated with an anti-corrosion galvanized coating to prevent rust and degradation, extending its service life and ensuring long-term reliability.
The integrated Dongfeng brand logo on the radiator grill is made of high-quality ABS plastic with a chrome-plated finish, which enhances brand recognition and adds a touch of sophistication to the vehicle’s front end. The chrome plating is applied using a vacuum sputtering process, ensuring a durable, scratch-resistant finish that resists fading and tarnishing over time. The logo is precisely positioned at the center of the grill, aligning with the vehicle’s front-end symmetry and enhancing the overall aesthetic coherence.
The manufacturing process of the SX7-2803710DF Radiator Grill follows a strict, ISO 9001 and IATF 16949 certified production workflow, consistent with Dongfeng’s global quality standards and modern automotive component manufacturing practices. The production process begins with the injection molding of the ABS main frame and grid bars, which is done using high-precision injection molding machines to ensure dimensional accuracy (tolerance of ±0.03 mm) and structural integrity. The injection molding process is carefully controlled to avoid defects such as bubbles, cracks, or uneven surfaces, ensuring each component meets Dongfeng’s strict quality standards.
After injection molding, the components undergo a series of post-processing steps, including deburring, sanding, and cleaning, to remove any imperfections and ensure a smooth surface. The electrostatic spraying coating is then applied, with the color carefully matched to the Dongfeng SX5’s original factory specifications to ensure a seamless aesthetic integration. The coated components are cured at a high temperature (120–130°C) to ensure the coating adheres firmly and provides long-lasting protection. The steel mounting bracket is then precision-machined and treated with an anti-corrosion galvanized coating, while the chrome-plated logo is attached to the main frame using high-strength adhesive and mechanical fasteners.
The entire assembly undergoes rigorous quality control testing to ensure it meets Dongfeng’s strict performance and safety standards. These tests include impact resistance testing, temperature resistance testing, corrosion resistance testing, dimensional accuracy testing, and coating adhesion testing. Impact resistance testing verifies that the grill can withstand impacts from small gravel and minor collisions without cracking or deformation. Temperature resistance testing confirms that the grill can operate normally in extreme temperatures (-40°C to 85°C), without warping or material degradation. Corrosion resistance testing ensures that the coating and underlying materials can withstand exposure to road salt, moisture, and other corrosive substances. Dimensional accuracy testing verifies that the grill’s dimensions and mounting points match the Dongfeng SX5’s specifications, ensuring perfect fitment. Only radiator grills that pass all these tests are allowed to leave the factory, ensuring the SX7-2803710DF series delivers reliable performance and long service life in the Dongfeng SX5.
3. Structural Composition & Key Design Features
The Dongfeng SX7-2803710DF Radiator Grill features a precision-engineered structural design, tailored to the specific requirements of the Dongfeng SX5’s front-end layout and the vehicle’s functional needs. Its structural composition is optimized to maximize airflow for heat dissipation, ensure robust protection of internal components, enhance aerodynamic performance, and integrate seamlessly with the vehicle’s exterior design, with key design features that address the unique challenges of front-end component operation—especially in adverse weather conditions and rough driving environments.
One of the key design features of the SX7-2803710DF Radiator Grill is its optimized horizontal grid pattern, which balances airflow efficiency and debris protection. The grill features evenly spaced, horizontal grid bars with rectangular openings that allow maximum airflow to pass through to the radiator while blocking large debris (such as stones, branches, and leaves) from entering the engine compartment. The size of the grid openings (typically 10–12 mm in width and 20–25 mm in height) is carefully calibrated to ensure optimal airflow—sufficient to cool the radiator even during high-temperature operation—while preventing debris that could damage the radiator fins or other internal components. The horizontal grid pattern is also designed to be aesthetically pleasing, complementing the Dongfeng SX5’s rugged, practical front-end design and enhancing its dynamic appearance.
Another critical design feature is the fully integrated structural frame, which provides exceptional rigidity and stability. The main frame of the grill is a one-piece injection-molded structure, which eliminates weak points and ensures uniform structural strength across the entire grill. This one-piece design prevents the grill from warping or deforming under extreme temperatures or mechanical stress, ensuring it remains aligned with the radiator and bumper assembly. The frame is also designed to absorb and distribute impact energy in the event of a minor collision, reducing damage to the grill and underlying components.
The SX7-2803710DF Radiator Grill also features a streamlined, aerodynamic design that is tailored to the Dongfeng SX5’s front-end profile. The grill’s front surface is slightly curved, reducing wind resistance during high-speed driving and minimizing wind noise. The edges of the grill are smoothly rounded, not only enhancing the vehicle’s aesthetic appeal but also reducing the risk of injury in the event of a collision with pedestrians. The overall dimensions of the grill (typically 650mm × 220mm × 45mm) are precisely engineered to fit into the dedicated mounting space in the Dongfeng SX5’s front bumper, ensuring a seamless fit that does not affect the vehicle’s aerodynamic performance or front-end symmetry.
Furthermore, the radiator grill is designed with a precision mounting system, consisting of multiple mounting points and clips that ensure secure attachment to the vehicle’s front-end frame and bumper. The mounting bracket (made of high-strength steel) is integrated into the main frame, with pre-drilled holes that align perfectly with the Dongfeng SX5’s mounting points. The clips are made of high-quality plastic with excellent elasticity, ensuring a tight, secure fit that prevents vibration during driving. This mounting system is designed to be easy to install and remove, reducing repair time and costs for professional technicians and vehicle owners.
Another key design feature is the integrated brand logo and trim details. The Dongfeng brand logo is prominently positioned at the center of the grill, mounted on a raised platform that enhances its visibility and brand recognition. The logo is surrounded by a subtle chrome trim (on select trim levels), which adds a touch of elegance and sophistication to the vehicle’s front end. The trim details are designed to complement the Dongfeng SX5’s headlamps and front bumper, creating a cohesive and premium look. Additionally, the grill’s surface finish (matte or gloss black) is matched to the vehicle’s other exterior trim pieces, ensuring aesthetic consistency.
The SX7-2803710DF Radiator Grill also features a drainage design, with small drainage holes at the bottom of the frame to prevent water from accumulating inside the grill or seeping into the engine compartment. This drainage design is particularly important in rainy weather, as it ensures water flows away from the radiator and other internal components, preventing corrosion and water damage. The drainage holes are strategically positioned to avoid affecting the grill’s structural integrity or airflow efficiency.
